GLASS FIBER 품종별 종류 • Home > GLASS FIBER > GLASS FIBER 품종별 종류

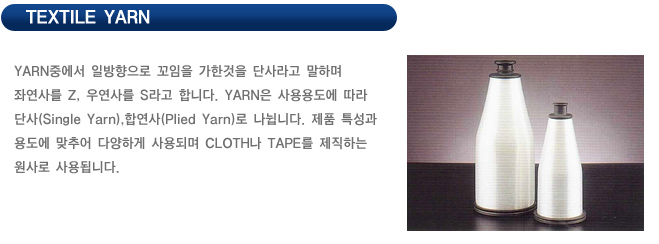

YARN DESCRIPTION FILAMENT
Dia.(㎛)
TEX
(g/1000m)
TENSILE STRENGTH
(N/Tex)
ECD 900 1/0 1 Z 5 5.6     > 0.39이상







































    >0.34이상
ECD 450 1/0 1 Z 5 11.2
ECD 450 1/2 4.4S 5 22.5
ECE 225 1/0 1 Z 7 22.5
ECG 150 1/0 0.7Z 9 33.7
ECG 150 1/2 3.8S 9 67.5
ECG 150 1/3 3.8S 9 101.2
ECG 75 1/0 0.7Z 9 67.5
ECG 75 1/2 3.8S 9 135.0
ECG 75 1/3 3.8S 9 202.5
ECG 75 1/4 3.8S 9 270.0
ECG 75 2/2 2.5S 9 270.0
ECH 55 1/0 0.7Z 11 92.0
ECH 55 1/2 3.8S 11 184.0
ECH 55 1/4 3.8S 11 368.0
ECH 50 1/0 0.7Z 11 101.2
ECE 50 1/3 3.8S 11 303.7
ECH 50 1/4 3.8S 11 404.8
ECH 50 2/3 3.8S 11 607.2
ECH 50 2/4 3.8S 11 809.6
ECH 45 1/0 0.7Z 11 112.5
ECH 45 1/3 3.8S 11 337.5
ECH 45 1/4 3.8S 11 450.0
ECH 45 2/3 3.8S 11 675.0
ECG 37 1/0 0.7Z 11 136.8
ECG 37 1/3 3.8S 11 410.4
ECH 25 1/0 0.7Z 11 202.4
ECK 18 1/0 0.7Z 13 281.2
